Specification

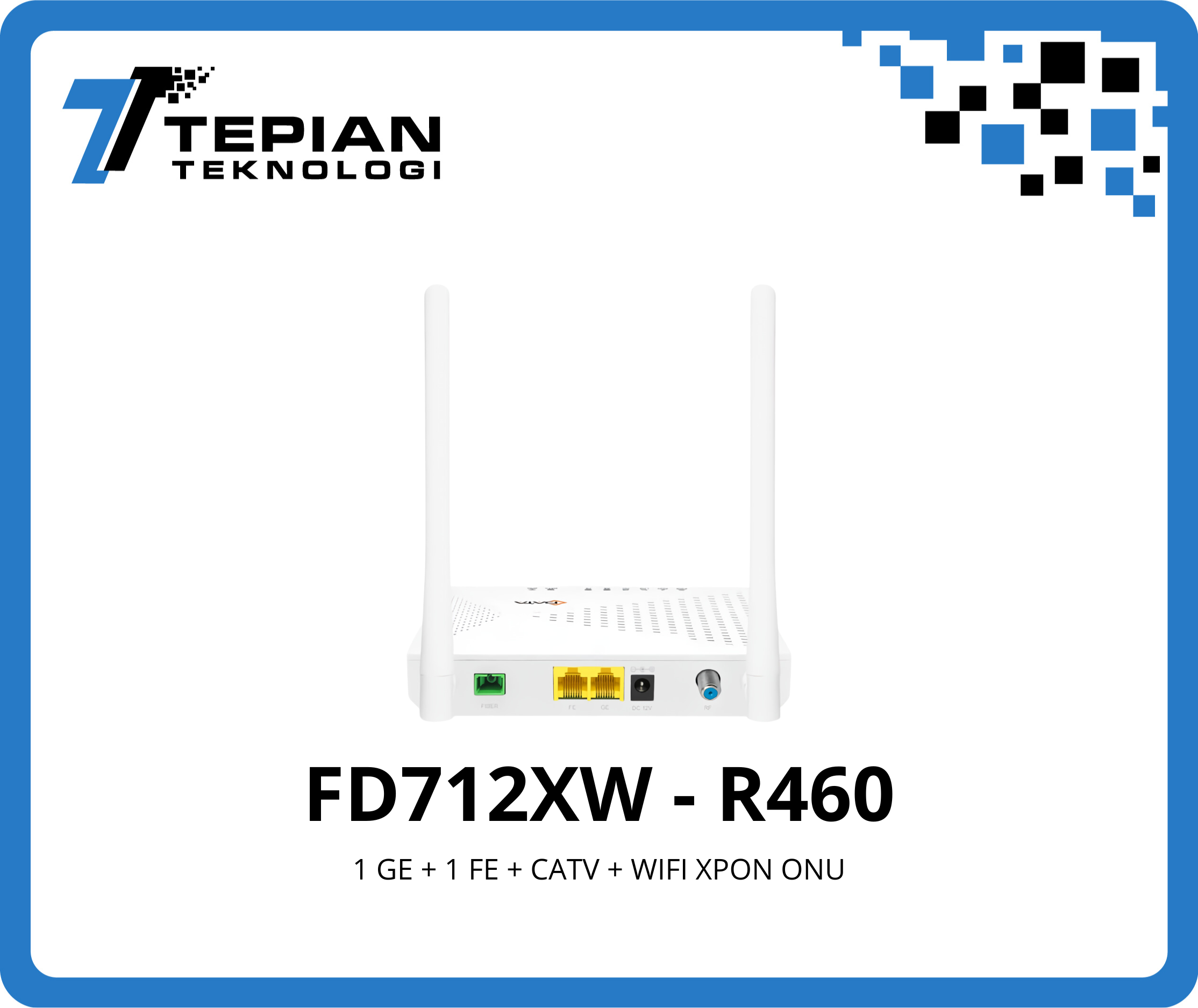

Model FD712XW-R460
User Port (LAN) 1x10/100 and 1x10/100/1000Mbps adaptive Ethernet port
Full/half duplex
Auto MDI/MDI-X
Indicators PWR / PON / LOS / GE / FE / INT / CATV / WIFI
PON Mode EPON : 1000BASE-PX20+ symmetric
GPON : FSAN G.984.2 standard,Class B+
PON Rate EPON : 1.25Gbps (downstream/upstream)
GPON : 2.488Gbps/1.244Gbps (downstream/upstream)
Wavelength Transmit : 1310nm
Receiver : 1490nm
Receiving sensitivity EPON : -27dBm
GPON : -28dBm
Saturated power EPON : -3dBm
GPON : -8dBm
Transmitting power EPON : 0 ~ 4dBm
GPON : 0.5 ~ 5dBm
CATV (Input/Output port) Wavelength : 1550nm
Input optical power : -18dBm?0dBm(with AGC)
RF frequency : 47MHz~1000MHz
RF output level : 78dBuV (@-12~-2dBm@85MHz) (with AGC)
RF output return loss : >12dB(with AGC)
RF impedance : 75Ω
WIFI IEEE802.11b/g/n (2.4G)
Max rate : 300M (2.4G)
MAX TX power 2.4G : 17dBm
Power External 12VDC/1A power supply adapter
Power consumption ≤7.2W
Working temperature 0 to 40ºC
Operating humidity 10% ~ 90% (Non-condensing)
