Specification

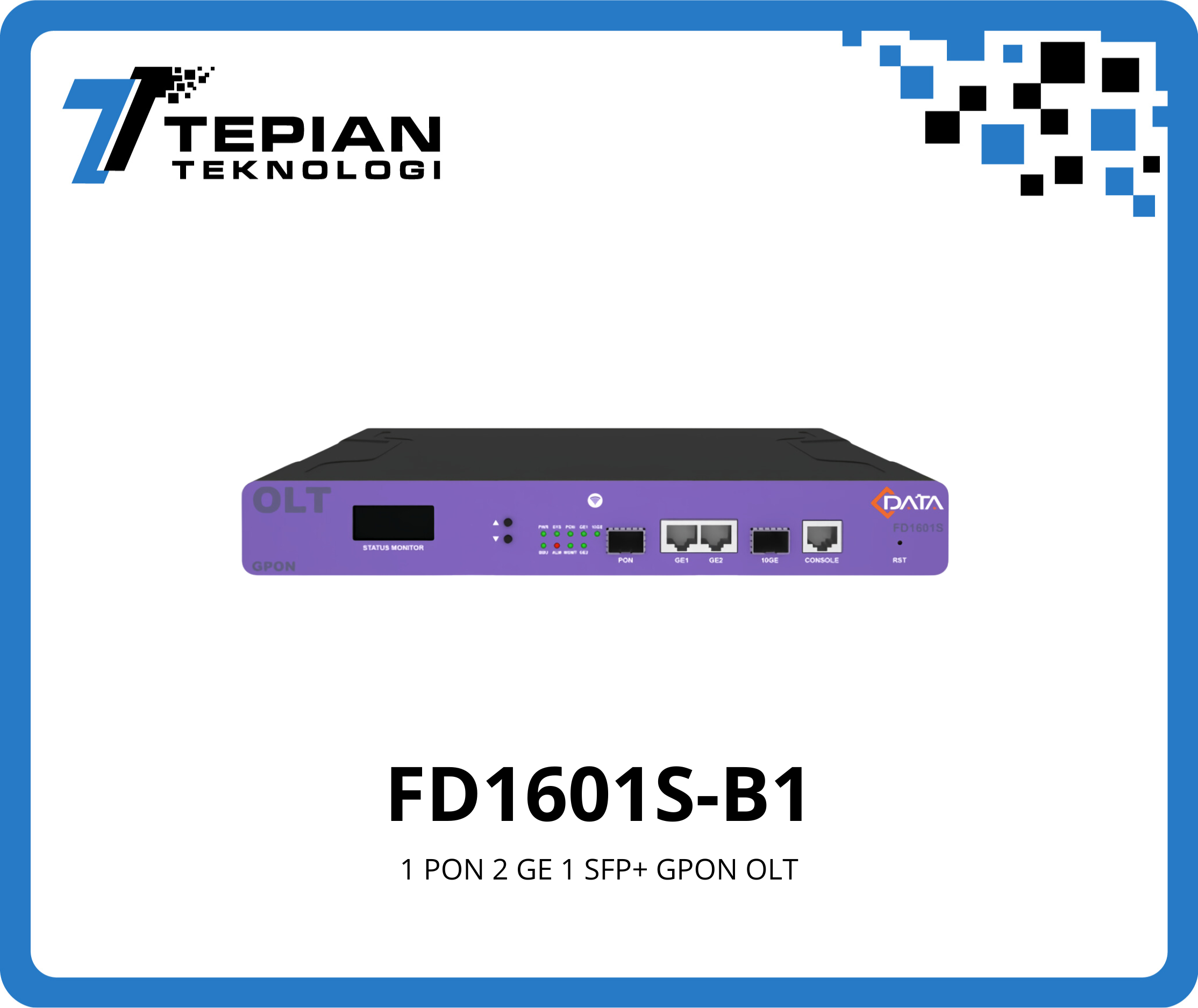

Model FD1601S-B1
Uplink Port 2 x 10/100/1000M auto-negotiation Ethernet ports
Optional Port 10 Gigabit uplink port
PON Port Quantity : 1
Physical interface : SFP slot
Interface type : GPON: ITU-TG.984.2 Class B+/Class C+
Max splitting ratio : GPON: 1:128
Management Port 1 CONSOLE local management port
Transmission distance 20KM
Port rate GPON:
Downstream: 2.5Gbps
Upstream: 1.25Gbps
Wavelength Forwarding: 1490nm
Receiving: 1310nm
Interface type SC/UPC
Fiber type 9/125μm SMF (Single Mode Fiber)
Light transmission power Class B+ +1.5 ~ +5dBm
Class C+ +3 ~ +7dBm
Receiving sensitivity Class B+ : -28dBm
Class C+ : -30dBm
Saturation power Class B+ -8dBm
Class C+ -12dBm
Backplane Bandwidth 27.75G
Power supply AC : 100V ~ 240V, 47~63Hz
DC : External adapter mode 12V/2.5A
Working temperature -15 ~ 50 C
Storage temperature -40 ~ 85 C
Ambient humidity 5 ~ 90% (Non-condensing)
